Description

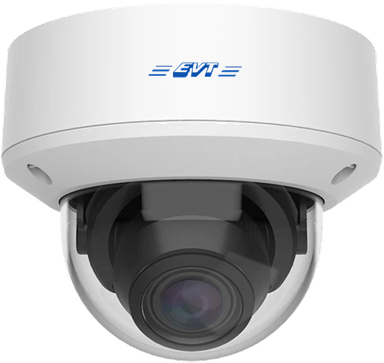

| EVT-EN52812-DIV 5MP SMART-AI ENHANCED-DOME IR NETWORK CAMERA | |
| Video | |
| Imaging Device | 1/2.7″ |
| Effective Pixels | 5MP 2592（H）x1944（V） |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.004lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8-12mm |
| Max. Aperture Ratio | F No. 1.8 (W) ~ 3.3(T) |
| Angular Field of View | Horizontal: 107-34°, Vertical: 55-19°, Diagonal: 134-38° |
| Min. Object Distance | 0.2M~INF |
| Lens Type | Motorized(Ø14) P-Iris |
| Operational | |
| IR Viewable Length | Up to 40m |
| Camera Title | On/Off |
| Day & Night | IR cut filter with auto switch（Day/Night/Auto/Image/Schedule） |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | 120 dB WDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | 1 input, 1 output |
| Audio | 1 input (RCA), 1 output (RCA) |
| Hardware Reset | Yes |
| Smart Feature | Face Detection（FD） Human&Vehicle Detection（PD&VD）Perimeter Intrusion Detection（PID）Line Crossing Detection（LCD） Cross Counting（CC）Stationary Object Detection（SOD）Heat Map（HM）Crowd Density Detection（CD）Queue Length Detection（QD）license Plate Detection（LPD）Rare Sound Detection（RSD） |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265+/H.264+/H.265/H.264/MJPEG |
| Resolution | Main Stream@30fps 5MP(2592X1944) 4MP(2880×1620), |
| Video Quality Ajustment | 256Kbps ~ 8Mbps |
| Bitrate control method | CBR/VBR |
| Streaming Capability | Triple-Stream (Main/Sub/Mobile) |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Web browser | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| Security | IP address filter;complicated password;Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Application Programming Interface | ONVIF (Profile S/G/T/M) |
| Environmental | |
| Operating Conditions | -35～+60°C/less than ≤ 90% RH |
| Ingress Protection | IP67 / IK10 |
| Electrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption（IR OFF） | 3W-4W |
| Power Consumption（IR ON） | 5W-7W |
| Mechanical | |
| Material | Metal |

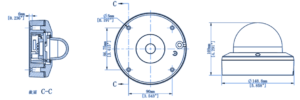

| Dimensions (HxWxD) | 150*109mm |
| Weight | 972g |
