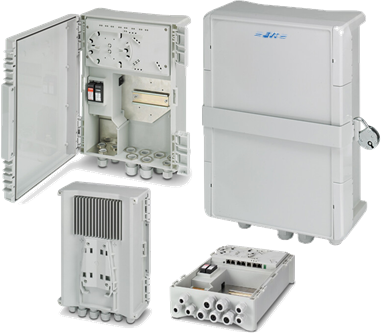

| EVT-ENCLOSURE-P60 NEMA-RATED OUTDOOR SMART ENCLOSURE |
|
|
|
|
|
|
|
| Interface |
| Ethernet Ports |
|
- 10/100/1000BASE-T PoE 2 or 4 Ports
- 10/100/1000BASE-T 0 or 2 Ports
- 100/1000BASE SFP 0 or 2 Ports
|
|
LED Indicators |
|
- Per Unit: Power (Green), AUX Power (Green)
- Per Unit: Link/Activity (Green: 10/100M, Orange: 1000M; On: Connection Established, Flashing: Data Transmission Progressing
- Per Port: PoE (Green: Auto Mode, Orange: Force Mode)
|
| Mode Button |
|
- Exiting without Changes
- Resetting to Factory Settings
- Operating with Static IP Address
- Setting DHCP Mode
- Setting BootP
- Setting Unmanaged Mode
|
|
|
|
|
|
|
|
| Technology |
| Standards |
|
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3x full duplex and flow control
- IEEE 802.1p QoS
- IEEE 802.1Q Tag VLANS
- IEEE 802.1w RSTP
- IEEE 802.1ab LLDP
- IEEE 802.3af/at/bt Power over Ethernet
- IEEE 802.1x Port-based Network Access Control
|
|
Forwarding/Filtering Rate |
|
- 14,880pps for 10Mbps
- 148,880pps for 100Mbps
- 1,488,000pps for 1000Mbps
|
| Processing Type |
|
|
8K |
|
|
|
|
|
|
|
| Power |
| Input |
|
- 100-240VAC, -15% – +10% (Single Phase)
|
|
Output |
|
|
| PoE Power Output |
|
- Ports 1-3: Up to 90W/Port
- Port 4: Up to 30W
|
|
PoE Power Budget |
|
- 165W (155W if Power Output Used)
|
|
|
|
|
|
|
|
| Environmental |
| Operating Temperature |
|
|
|
Storage Temperature |
|
|
| Relative Humidity |
|
- 5% to 95% (Non-Condensing)
|
|
MTBF |
|
|
|
|
|
|
|
|
|
| Regulatory |
| ISO |
|
|
|
Safety |
|
|
| EMI |
|
- FCC Part 15B Class A
- VCCI Class A
- ICES-003
- EN 61000-6-4
|
|
EMS |
|
- EN 61000-6-2
- EN 61000-6-3
- EN 61000-4-2 (ESD)
- EN 61000-4-3 (Radiated RFI)
- EN 61000-4-4 (Burst)
- EN 61000-4-5 (Surge)
- EN 61000-4-6 (Induced RFI)
|
| Vibration |
|
|
|
Shock |
|
|
|
|
|
|
|
|
|
| Feature and Benefits |
1 NEMA 4/4X Rated Enclosure
|
|
Vandal (IK10)/Weather/UV Resistant and Anti-Corrosion Stainless & Polycarbonate Material |
| 2 Hardened Grade |
|
-40°C-75°C Operating Temperature |
| 3 Fiber Splice Tray |
|
Integrated Tray for Easy Fiber Cable Splicing & Storage |
| 4 Removable Dual-Hinged Door |
|
Door Opens in Either Direction, Allowing for Easy Installation. Can Also be Completely Removed for Uninterrupted Fiber Splicing |
| 5 Space for Extras |
|
Built-in DIN-Rail & Extra Room for Adding External Devices |
| 6 Power Supply |
|
Integrated Power Supply with 100-240VAC Input and Circuit Breaker |
| 7 Easy Cable Management |
|
10 Pre-Drilled Holes & Pre-installed Bulkhead Connectors for Secure & Easy Cable Management & Connection |
| 8 PoE Switch |
|
- Up to 90W/Port, Backward Compatible with All 15W/30W/60W Devices, 165W Total Budget.
- 2SFP or RJ45 Uplink Ports
|
| 9 Auxiliary Power Output |
|
24VDC Output for Powering Auxiliary Devices Such as Access Control Panels |
| 10 Included Mounting Accessories |
|
Compatible for Wall and/or Pole Installations, While it Can Take the Heat with External Metal Heat Sink |
|
|
|
|
|
|
|
