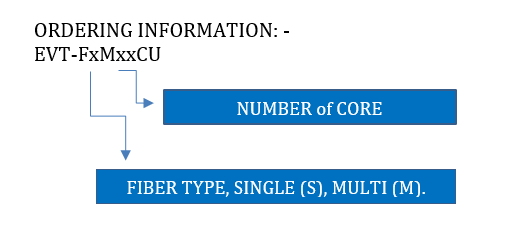

1. Cable Type: A-DQ (BN) H mxn….1.200N CT
Fiber type SM 9/125 G.652 d
Attenuation at 1310 nm Max 0,36 dB/km
Attenuation at 1550 nm Max 0,22 dB/km
| Segment | Unit | Up to 24-Core |
| Tube Diameter | mm±0,07 | 2,90 |
| Tube inner diameter | mm±0,07 | 1,70 |
| Number of Tube | Pieces | 1 |
| Number of Fiber per Tube | Fiber/tube | Up to 24 fiber |
| Tensile Strength (Installation) | N | 1,200 |
| Nominal Outer Diameter of Cable | Nom.mm ± 0,5 | 6,5 |
| Nominal Cable Weight | Kg/km | 60 |
| Nominal Gross Weight | Kg/drum | 160 |
| Drum Flange Diameter (WxHxD) | Cm | 85x85x55 |
| Nominal Cable Length on Drum | Meter/drum ± %5 | 2,000 |

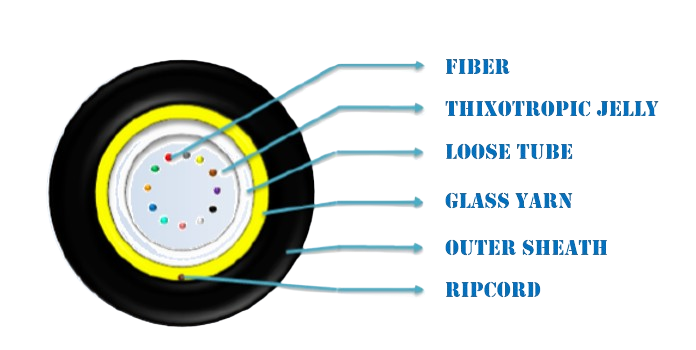

Loose Buffer Tube PBT (polybutylene terephthalate)
Filling Compound in Loose Tube Thixotropic Jelly Compound
Core Wrapping Tape NA
Auxiliary Strength Member Glass Yarn
Corrugated Steel Tape Thickness NA
Co-Polymer Thickness NA
Outer Sheath Material PVC
Outer Sheath Color Blue
Outer Sheath Thickness Nom.1,20 ± 0,1 mm
Ripcord 1 pieces under the sheath
Cable drum 2.000 ± %5 mt
Tensile Strength for Short Term 1.200N IEC 60794-1-E1
Tensile Strength for Long Term 800N IEC 60794-1-E1
Bending Radius 20xD IEC 60794-1-2-E11
Repeated Bending Radius 5xD,10 cycle,50 N IEC 60794-1-2-E6
Torsion Test ±180º,1 meter,10 Cycle IEC 60794-1-2-E7
King Test Min 20xD IEC 60794-1-2-E10
Impact Test 1 meter 5 N IEC 60794-1-2-E4
Crush Test 1.000N/100mm IEC 60794-1-2-E3
Temperature Cycling -30ºC/+80ºC
Operation Temperature -10ºC/+30ºC – Installation
-30ºC/+50ºC – Operation
2. Color Code of Fibers
| No of
Fiber |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Violet | Pink | Aqua |
| No of
Fiber |
13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Color | Blue Black | Orange Black | Green Black | Brown Black | Grey Black | White Black | Red Black | Natural Black | Yellow Black | Violet Black | Pink Black | Aqua Black |
3. Length marking on the cable
The outer sheath will be marked in one-meter intervals as following example;
EVT CABLES <2021> 24 CORE 9/125 SM UNARMORED PVC JACKET INDOOR EN 60794 FIBER OPTICAL CABLE <2000M>
4. Color of Sheath
Outer sheath is PVC material that is durable and cost-effective.
5. Packing
Shipment will be done with non-returnable wooden drums with protection.
6. Cable Life Time
Designed cable has a minimum 25 years’ service life time, if the cable is correctly installed.
7. Technical Specification for Single Mode Optical Fiber (ITU-T SM G.652 d) Optical Specifications
| Attenuation | @1310 nm @1550 nm
@ 1383±3 nm |
Max.0,334 dB/km Max. 0,194 dB/km
Max. 0,310 dB/km |
| Attenuation Change | @1285-1330 nm @1525-1575 nm | ≤ 0,03 dB/km (1310 nm reference)
≤ 0,02 dB/km (1550 nm reference) |
| Cable Cut-off Wavelength | ≤ 1260 | |
| Chromatic Dispersion | at 1285~1330 nm at 1550 nm
at 1625 nm |
≤ 3,5 (ps nm/km)
≤ 18 (ps nm/km) ≤ 22 (ps nm/km) |
| Zero Dispersion Wavelengths | 1302-1322 nm | |
| Zero Dispersion slope | ≤ 0,090 ps/(nm² .km) | |
| Polarization Mode Dispersion Coefficient | ≤ 0,2 PS/ km | |
| Geometrical Specifications | |
| Mode Field Diameter at 1310 nm | 9,2µm ± 0,4 |
| Mode Field Diameter at 1550 nm | 10,4µm ±0,5 |
| Cladding Diameter | 25µm ±0,7µm |
| Core/Cladding Concentricity Error | ≤ 0,5µm |
| Cladding Non-Circularity | ≤ 0,7% |
| Coating Diameter | 250±15µm |
| Coating Concentricity Error | ≤ 15µm |
| Coating/cladding Non-Circularity Error | ≤ 12% |
| Fiber proof test level | ≥ 100 kpsi (1,0 % strain) |
8. Life Time Technical Specification of 62,5/125 OM1 MM Optical Fiber (ISO IEC 11801 OM1) Optical Specifications
| Attenuation | at 850 nm | Max 3,00 dB/km |
| at 1300 nm | Max 0,70 dB/km | |
| Band width | at 850 nm | Min 160 M Hz km |
| at 1300 nm | Min 300 M Hz km | |
| Numerical Aperture | 0,275±0,015 |
| Geometrical Specifications | |
| Core Diameter | 62,5±3µm |
| Coating Diameter | 245 ±10µm |
| Cladding Diameter | 125 ±-2 µm |
| Cladding Non-Circularity | Max.2% |
9.Technical Specification of 50/125 OM2 MM Optical Fiber (ISO IEC 11801 OM2) Optical Specifications
| Attenuation | at 850 nm | Max 2,50 dB/km |
| at 1300 nm | Max 0,70 dB/km | |
| Band width | at 850 nm | Min 500 M Hz km |
| at 1300 nm | Min 500 M Hz km | |
| Numerical Aperture | 0,200 ± 0,015 |
| Geometrical Specifications | |
| Core Diameter | 50±2.5µm |
| Coating Diameter | 245 ±10µm |
| Cladding Diameter | 125 ±-2 µm |
| Cladding Non-Circularity | Max.2% |
| Coating | Dual Layer PVC Coat |
10.Technical Specification of 50/125 OM3 MM Optical Fiber (ISO IEC 11801 OM3) Optical
Specifications
| Attenuation | at 850 nm | Max 2,50 dB/km |
| at 1300 nm | Max 0,70 dB/km | |
| Band width | at 850 nm | Min 1.500 M Hz km |
| at 1300 nm | Min 500 M Hz km | |
| Numerical Aperture | 0,200 ± 0,015 |
| Geometrical Specifications | |
| Core Diameter | 50±2.5µm |
| Coating Diameter | 245 ±10µm |
| Cladding Diameter | 125 ±-2 µm |
| Cladding Non-Circularity | Max.2% |
| Coating | Dual Layer PVC Coat |
11.Technical Specification of 50/125 OM4 MM Optical Fiber (ISO IEC 11801 OM4) Optical
Specifications
| Attenuation | at 850 nm | Max 2,50 dB/km |
| at 1300 nm | Max 0,60 dB/km | |
| Zero Dispersion wavelength | 1295-1340 nm | |
| Zero Dispersion Slope | ≤0,105 ps/nm²-km(1295≤λ0≤1310 nm) | |
| Band width | at 850 nm | Min 4.000 M Hz km |
| at 1300 nm | Min 500 M Hz km | |
| Numerical Aperture | 0,200 ± 0,015 |
| Geometrical Specifications | |
| Core Diameter | 50±2.5µm |
| Coating Diameter | 245 ±10µm |
| Cladding Diameter | 125 ±-1 µm |
| Cladding Non-Circularity | Max.1% |
| Coating Non-Circularity | Max.5% |
| Coating –Clad Concentricity Error | ≤ 8µm |
| Tensile Proof Test | 100 kpsi |
| Coating | Dual Layer PVC Coat |
