Description

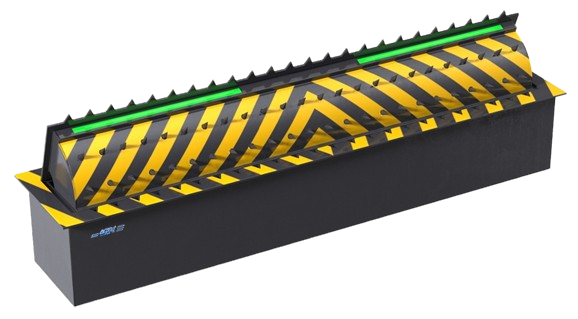

| EVT-HRB4178-SM HYDRAULIC ROAD BLOCKER 4M(L) x 1M(W) x 0.78M(H) | |
| Specification | |
| Product style | Hydraulic Road Blocker |
| System control | Electric + Hydraulic |

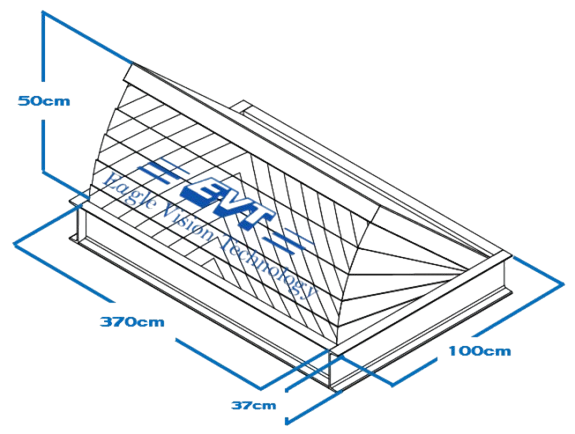

| Body specifications | Length 4000mm * Width 1000mm * Height 780mm |
| Interception width | 3700mm |
| Lifting height | 500mm （Option: 600mm, 800mm height） |
| Panel thickness | 16mm |
| Panel material | A3 steel |
| Treatment process | Anti-rust paint treatment |
| Overall weight | About 1.44 tons |
| Lifting force | 2 tons, Max passing pressure: 120Tons |
| Waterproof rating | IP68 |
| Passing pressure | 60 tons container truck can pass |
| Ascent speed | 3 ~ 5S |
| Falling speed | 1 ~ 3S |
| Supply voltage | 380V (control voltage 24V) |
| System power | 3.7KW (one for one system) |
| Hydraulic pump specifications | 510mm * 580mm * 780mm, about 150KG |
| Tubing specifications | 1/2 high-pressure tubing, double-layer steel wire mesh structure |
| Controller chip | Mitsubishi PLC |
| Controller specifications | 500mm * 400mm * 200mm, 11 kg |
| Controller installation | Indoor, wall mountable, waterproof |
| Working temperature | -35 ℃ ~ 75 ℃ |
| Storage environment | -35 ℃ ~ 85 ℃, waterproof |
