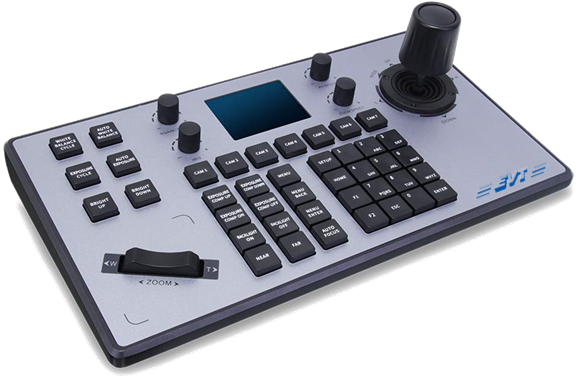

EVT-KBD-P

  • 4D PoE PTZ-CONTROL KEYBOARD JOYSTICK


  • Variable Speed 4D Joystick
  • Supports IP & Serial Control Modes
  • Multi Compatibility Built-in Pelco-P Pelco-D
  • Ergonomic Design
  • ONVIF Protocol & PoE Support

Download Datasheet

Category:

Description

PoE PTZ-CONTROL KEYBOARD JOYSTICK
General Specifications
Power PoE – Via USB Interface Compliance ONVIF
Approvals EN 55032 Class B, EN 55024, EN 61000-6-2,
FCC Part 15 Subpart B Class B, RCM AS/NZS CISPR 32 Class B, ICES-003 Class B, VCCI Class B, EN/IEC/UL 62368–1,
KC KN-32 Class B KN 35, EN 60529 IP20
Working Temp. -10°C~55°C / 14°F~131°F
Work humidity 20%~80% frostless Size 179.2mm x 321mm x 105.7mm
7 inch x 12.64 inch x 4.2 inch
Weight 1.63kg/3.6pound Material Full Metal
Screen TFT LCD 320*240 Warranty 3-Years
System requirements Windows 10, Windows 7, Windows XP, Windows Vista, Windows 12 (Server), Windows 8 (Server), USB 2.0 port Functionality One Key Switch-Thanks to the 7 buttons design, the E2 joystick support 7 buttons one key switch from CAM1 to CAM7 for fast and easy switch.No need to input camera address and select anymore.
