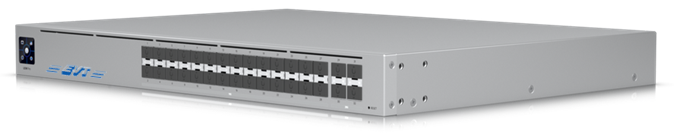

EVT-M2410X04100 L3 24x10G PLUS 04x100G MANAGED SWITCH

– L3 24-Port 10G-SFP+/4-Port 100G-QSFP

– Powerful 100Gbps Aggregation Capability for Long-Reach

– Redundant Ring & Fast Recovery for Critical Applications

– Efficient and Secure Management

– Strong Multicast

Download Datasheet

Add to Wishlist
Categories: ,

Description



EVT-M2410X04100 L3 24x10G PLUS 04x100G MANAGED SWITCH
Hardware Specifications
QSFP28 Slots 4 with each supporting native 100/40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes SFP+ Slots 24 10GBASE-SR/LR SFP+ interfaces Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console 1 x RJ45-to-DB9 serial port (9600, 8, N, 1) Management Port 1 x 10/100/1000BASE-T RJ45 port
USB 1 x USB 2.0 Dimensions (W x D x H) 442.5 x 364 x 44 mm 1U height
Weight 5990g Power Consumption 75 watts/210 BTU (maximum)
Power Requirements AC 100~240V, 50/60Hz Number of Power Supply Bays 2
Number of Fan/Fan Trays 4 fixed Flash 32MB
DRAM 1024MB
Switching Specifications
Switch Architecture Store-and-Forward Switch Capacity 800Gbps/non-blocking
Switch Throughput 600Mpps Address Table 32K MAC address table with auto learning function
Shared Data Buffer 4MB Flow Control Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Jumbo Frame 9KB
Layer 3 Routing Specifications
Routing Table
  • IPv4 Default 8K, Max 16K
  • IPv6 Default 4K, Max 12K
 ARP Table
  • IPv4: 10K
  • IPv6: 10K
IPv4 Layer 3 Functions
IP Routing Protocol
  • RIP v1/v2 OSPF
  • BGP (Border Gateway Protocol)
  • Static routing
 Routing Features
  • VRRP
  • Policy-based routing
  • Load balance through equal-cost routing
  • BFD (Bidirectional Forwarding Detection) for OSPF and BGP GRE tunnel
Multicast Routing Protocol PIM-DM and PIM-SM PIM-SSM MSDP
IPv6 Layer 3 Functions
IP Routing Protocol
  • RIPng OSPFv3 BGP4+
 Routing Features
  • Manual tunnel
  • ISATAP tunnel
  • 6-to-4 tunnel
IPv6 Functions
  • ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Neighbor Discovery
  • Path MTU Discovery
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable
Bandwidth control on each port
Port loopback detect		 VLAN IEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q VLAN stacking/tunneling GVRP for VLAN management
Private VLAN Protocol-based VLAN MAC-based VLAN
IP subnet–based VLAN Voice VLAN
Multicast VLAN Register (MVR)
Up to 4K VLAN groups
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU protection, root protection		 Ring ITU-G G.8032 ERPS EAPS
IPv4 IGMP Snooping IPv4 IGMP v1/v2/v3 snooping IGMP Fast Leave
IPv4 Querier
IGMP Filtering and IGMP Throttling IGMP Proxy reporting		 IPv6 MLD Snooping IPv6 MLD v1/v2 snooping
Bandwidth Control Ingress and Egress At least 64Kbps stream Link Aggregation IEEE 802.3ad LACP/static trunk
Authentication
  • IEEE 802.1x port-based network access control
  • AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
Security Functions
Access Control List Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL
Time-based ACL
Up to 1K entries		 Security Port isolation
Port security, supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks
Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82
Command line authority control based on user levels
AAA TACACS+ and IPv4/IPv6 over RADIUS Network Access Control IEEE 802.1x port-based network access control
Standard Conformance
Regulatory Compliance FCC Part 15 Class A, CE Standards Compliance IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: : 10 ~ 85% (non-condensing)		 Storage Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)







Available Modules
100Gbps QSFP28
Model DDM Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (nm) Operating Temp.
QSFP-100G-SR4 YES 100G MPO Multi Mode 70m (OM3)
100m (OM4)		 850nm 0 ~ 70 degrees C
QSFP-100G-LR4 YES 100G LC Single Mode 10km 1310nm 0 ~ 70 degrees C
40Gbps QSFP+
QSFP-40G-SR4 YES 40G MPO/MTP Multi Mode 100m (OM3)
150m (OM4)		 850nm 0 ~ 60 degrees C
QSFP-40G-LR4 YES 40G LC Single Mode 10km 1310nm 0 ~ 60 degrees C
10Gbps QSFP+ (10G Ethernet/10GBASE)
Model DDM Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (nm) Operating Temp.
MTB-RJ – 10G Copper – 30m – 0 ~ 70 degrees C
MTB-SR YES 10G LC Multi Mode Up to 300m 850nm 0 ~ 60 degrees C
MTB-LR YES 10G LC Single Mode 10km 1310nm 0 ~ 60 degrees C
MTB-TSR YES 10G LC Multi Mode Up to 300m 850nm -40 ~ 75 degrees C
MTB-TLR YES 10G LC Single Mode 10km 1310nm –40 ~ 75 degrees C
10Gigabit SFP+ (10GBASE-BX, Single Fiber Bi-directional SFP)
Model DDM Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (TX) Wavelength (RX) Operating Temp.
MTB-LA20 YES 10G WDM(LC) Single Mode 20km 1270nm 1330nm 0 ~ 60 degrees C
MTB-LB20 10G WDM(LC) Single Mode 20km 1330nm 1270nm 0 ~ 60 degrees C
MTB-LA40 YES 10G WDM(LC) Single Mode 40km 1270nm 1330nm 0 ~ 60 degrees C
MTB-LB40 10G WDM(LC) Single Mode 40km 1330nm 1270nm 0 ~ 60 degrees C
MTB-LA60 YES 10G WDM(LC) Single Mode 60km 1270nm 1330nm 0 ~ 60 degrees C
MTB-LB60 10G WDM(LC) Single Mode 60km 1330nm 1270nm 0 ~ 60 degrees C
Gigabit Ethernet Transceiver (1000BASE-X SFP)
Model DDM Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (nm) Operating Temp.
MGB-GT – 1000 Copper — 100m — 0 ~ 60 degrees C
MGB-SX(V2) YES 1000 LC Multi Mode 550m 850nm 0 ~ 60 degrees C
MGB-SX2(V2) YES 1000 LC Multi Mode 2km 1310nm 0 ~ 60 degrees C
MGB-LX(V2) YES 1000 LC Single Mode 20km 1310nm 0 ~ 60 degrees C
MGB-L40 YES 1000 LC Single Mode 40km 1310nm 0 ~ 60 degrees C
MGB-L80 YES 1000 LC Single Mode 80km 1550nm 0 ~ 60 degrees C
MGB-L120(V2) YES 1000 LC Single Mode 120km 1550nm 0 ~ 60 degrees C
MGB-TSX YES 1000 LC Multi Mode 550m 850nm -40 ~ 75 degrees C
MGB-TSX2 YES 1000 LC Multi Mode 2km 1310nm -40 ~ 75 degrees C
MGB-TLX(V2) YES 1000 LC Single Mode 20km 1310nm -40~ 75 degrees C
MGB-TL40 YES 1000 LC Single Mode 40km 1310nm -40 ~ 75 degrees C
MGB-TL80 YES 1000 LC Single Mode 80km 1550nm -40 ~ 75 degrees C
Gigabit Ethernet Transceiver (1000BASE-BX, Single Fiber Bi-directional SFP)
Model DDM Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (TX) Wavelength (RX) Operating Temp.
MGB-LA10(V2)
MGB-LB10(V2)		 YES 1000 WDM(LC) Single Mode 10km 1310nm 1550nm 0 ~ 60 degrees C
1550nm 1310nm
MGB-LA20(V2)
MGB-LB20(V2)		 YES 1000 WDM(LC) Single Mode 20km 1310nm 1550nm 0 ~ 60 degrees C
1550nm 1310nm
MGB-LA40(V2)
MGB-LB40(V2)		 YES 1000 WDM(LC) Single Mode 40km 1310nm 1550nm 0 ~ 60 degrees C
1550nm 1310nm
MGB-LA80
MGB-LB80		 YES 1000 WDM(LC) Single Mode 80km 1490nm 1550nm 0 ~ 60 degrees C
1550nm 1490nm
MGB-TLA10(V2)
MGB-TLB10(V2)		 YES 1000 WDM(LC) Single Mode 10km 1310nm 1550nm -40 ~ 75 degrees C
1550nm 1310nm
MGB-TLA20
MGB-TLB20		 YES 1000 WDM(LC) Single Mode 20km 1310nm 1550nm -40 ~ 75 degrees C
1550nm 1310nm
MGB-TLA40
MGB-TLB40		 YES 1000 WDM(LC) Single Mode 40km 1310nm 1550nm -40 ~ 75 degrees C
1550nm 1310nm
MGB-TLA80
MGB-TLB80		 YES 1000 WDM(LC) Single Mode 80km 1490nm 1550nm -40 ~ 75 degrees C
1550nm 1490nm
Fast Ethernet Transceiver (100BASE-X SFP)
Model DDM Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (nm) Operating Temp.
MFB-FX – 100 LC Multi Mode 2km 1310nm 0 ~ 60 degrees C
MFB-F20 – 100 LC Single Mode 20km 1310nm 0 ~ 60 degrees C
MFB-F40 – 100 LC Single Mode 40km 1310nm 0 ~ 60 degrees C
MFB-F60 – 100 LC Single Mode 60km 1310nm 0 ~ 60 degrees C
MFB-F120 – 100 LC Single Mode 120km 1550nm 0 ~ 60 degrees C
MFB-TFX – 100 LC Multi Mode 2km 1310nm -40 ~ 75 degrees C
MFB-TF20 – 100 LC Single Mode 20km 1310nm -40 ~ 75 degrees C
Fast Ethernet Transceiver (100BASE-BX, Single Fiber Bi-directional SFP)
Model DDM Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (TX) Wavelength (RX) Operating Temp.
MFB-FA20
MFB-FB20		 – 100 WDM(LC) Single Mode 20km 1310nm 1550nm 0 ~ 60 degrees C
– 100 WDM(LC) Single Mode 20km 1550nm 1310nm 0 ~ 60 degrees C
MFB-TSA
MFB-TSB		 YES 100 WDM(LC) Multi Mode 2km 1310nm 1550nm -40 ~ 75 degrees C
YES 100 WDM(LC) Multi Mode 2km 1550nm 1310nm -40 ~ 75 degrees C
MFB-TFA20
MFB-TFB20		 – 100 WDM(LC) Single Mode 20km 1310nm 1550nm -40 ~ 75 degrees C
– 100 WDM(LC) Single Mode 20km 1550nm 1310nm -40 ~ 75 degrees C
MFB-TFA40
MFB-TFB40		 – 100 WDM(LC) Single Mode 40km 1310nm 1550nm -40 ~ 75 degrees C
– 100 WDM(LC) Single Mode 40km 1550nm 1310nm -40 ~ 75 degrees C
