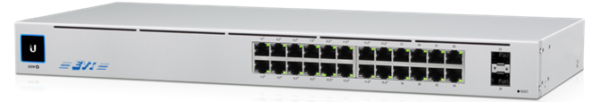

| EVT-M24GP+2UL 24-PORT Gigabit PoE +2SFP MANAGED SWITCH |
|
|
|
|
|
|
|
| Hardware Specifications |
| Hardware Version |
|
2 |
|
Copper Ports |
|
24 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports |
| PoE Injector Port |
|
24 802.3af/802.3at PoE Injector Ports |
|
SFP/mini-GBIC Slots |
|
2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Console |
|
1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
|
Thermal Fan |
|
2 |
| Power Requirements |
|
100~240V AC, 50/60Hz, 4A (max.) |
|
Power Consumption/Dissipation |
|
Max. 330 watts/1122 BTU |
| Dimensions (W x D x H) |
|
445 x 207 x 45 mm (1U height) |
|
Weight |
|
2.8kg |
| Enclosure |
|
Metal |
|
|
|
|
|
|
|
| Switching |
| Switch Architecture |
|
Store-and-Forward |
|
Switch Fabric |
|
52Gbps/non-blocking |
| Switch Throughput@64 bytes |
|
38.6Mpps @64 bytes |
|
MAC Address Table |
|
8K entries |
| Shared Data Buffer |
|
4.1 megabits |
|
Flow Control |
|
- IEEE 802.3x pause frame for full duplex
- Back pressure for half duplex
|
| Jumbo Frame |
|
9216 bytes |
|
|
|
|
|
|
|
| Power over Ethernet |
| PoE Standard |
|
- IEEE 802.3af Power over Ethernet/PSE
- IEEE 802.3at Power over Ethernet Plus/PSE
|
|
PoE Power Output |
|
- Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
- Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at)
|
| PoE Power Budget |
|
300 watts |
|
Number of PDs, 7 watts |
|
24 |
| Number of PDs, 15.4 watts |
|
19 |
|
Number of PDs, 30 watts |
|
9 |
| Surge Protection |
|
6kV on all network ports |
|
|
|
|
|
|
|
| Layer 2 Functions |
| Port Mirroring |
|
TX/RX/both
Many-to-1 monitor |
|
VLAN |
|
- 802.1Q tagged VLAN
- Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling
- Voice VLAN Protocol VLAN
- Private VLAN (Protected port) GVRP
- Management VLAN
|
| Link Aggregation |
|
IEEE 802.3ad LACP supports 1 group of 2-port trunk and static trunk supports 1 group of 2-port trunk |
|
Spanning Tree Protocol |
|
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
|
| IGMP Snooping |
|
- IGMP (v2/v3) snooping IGMP querier
- Up to 256 multicast groups
|
|
MLD Snooping |
|
IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
| QoS |
|
- 8 mapping IDs to 8 level priority queues
– Port number
– 802.1p priority
– DSCP/IP precedence of IPv4/IPv6 packets
- Traffic classification based, strict priority and WRR
- Ingress/Egress Rate Limit per port bandwidth control
|
|
Ring |
|
Supports ERPS, and complies with ITU-T G.8032 |
|
|
|
|
|
|
|
| Security Functions |
| Access Control List |
|
IPv4/IPv6 IP-based ACL/MAC-based ACL |
|
Port Security |
|
- IEEE 802.1X – Port-based authentication
- Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication
|
| MAC Security |
|
- MAC filter
- Static MAC address
|
|
Enhanced Security |
|
- DHCP Snooping and DHCP Option82
- STP BPDU guard, BPDU filtering and BPDU forwarding
- DoS attack prevention ARP inspection
- IP source guard
|
|
|
|
|
|
|
|
| Management Functions |
| Basic Management Interfaces |
|
- RS232 Console Web browser Telnet
- SNMP v1, v2c
|
|
Secure Management Interfaces |
|
SSHv2, TLSv1.2, SNMPv3 |
| System Management |
|
- Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol
- SNTP
PLANET Smart Discovery Utility PLANET NMS System |
|
Event Management |
|
- Remote/Local Syslog
- System log
|
| SNMP MIBs |
|
- RFC 1213 MIB-II
- RFC 1215 Generic Traps RFC 1493 Bridge MIB
- RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2)
- RFC 2819 RMON (1, 2, 3, 9)
- RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB
|
|
|
|
|
|
|
|
| Standards Conformance |
| Regulatory Compliance |
|
FCC Part 15 Class A, CE |
|
Standards Compliance |
|
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T
- IEEE 802.3x flow control and back pressure
- IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service
- IEEE 802.1Q VLAN tagging
- IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP
- IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- RFC 768 UDP
- RFC 793 TFTP
- RFC 791 IP
- RFC 792 ICMP
- RFC 2068 HTTP
- RFC 1112 IGMP version 1
- RFC 2236 IGMP version 2
- RFC 3376 IGMP version 3
- RFC 2710 MLD version 1
- RFC 3810 MLD version 2 ITU G.8032 ERPS Ring
|
|
|
|
|
|
|
|
| Environment |
| Operating |
|
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
|
Storage |
|
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
|
|
|
|
|
|
|
