Description
| Video | Resolution | 12MP,8MP,5MP, 3MP ,2MP (1080P),1.3MP (960P),1.0MP (720P) |
| Recording Bandwidth | Input | 640Mbps |
| out | 640Mbps | |
| Performance | ||
|
Live/Playback |
Compression | Audio: G.711A/G.711U
Video: H.264/H.265/H.264+/H.265+ |
|
Frame rate |
4K (8MP): 240fps 4MP: 480fps 2MP: 960fps | |
|
Event |
MD (Sensitivity Level 1~8) | |
| Video loss | ||
| Beep, Email,
Push notification to Mobile APP |
||
|
Playback function |
Fast forward / backward (2x, 4x, 8x,16x) | |
| Slow forward (1/2x, 1/4x, 1/8x,1/16x) | ||
| Playback | Max 16CH playback | |
| RAID | RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
|
UI/Monitoring |
Fisheye | Support |
| Local | UI5.0 | |
|
WEB |
IE10/11
Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
|
|
AI |
Face Detection | Support |
| Pedestrian Detection | Support | |
| Vehicle Detection | Support | |
| Cross Counting | Support | |
| Heat Map | Support | |
| Crowd Density Detection | Support | |
| Perimeter Intrusion Detection | Support | |
| Line Crossing Detection | Support | |
| Queue Length Detection | Support | |
| License Plate Detection | Support | |
| Rare Sound Detection | Support | |
| Interface | ||
| Passwords | Reset | Yes |
| Monitors |
HDMI |
3（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1920*1080, 1600*1200，1920*1200,
3840*2160/7680*4320/EDID）Async out *If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to 1080P, and HDMI 2 will be disabled. 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID）Async out |
|

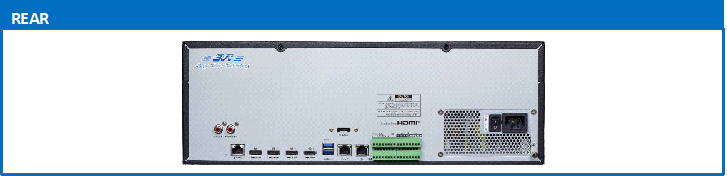

Connections |
Ethernet | 2 RJ45 1000 Base-T |
| USB | USB2.0*1(front) USB3.0*2(rear) | |
| Audio out | 1 | |
| E-SATA | 1 | |
| SSD | 16 SATA SSD, up to 18TB (Enterprise-Class) | |
| Line in | 1 | |
| RS232 | 1*RJ45 | |
| RS485 | 1 | |
| Alarm Input/out | 16in /4out | |
| General | ||
|
OSD Language |
English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian
/Arabic/Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish |
|

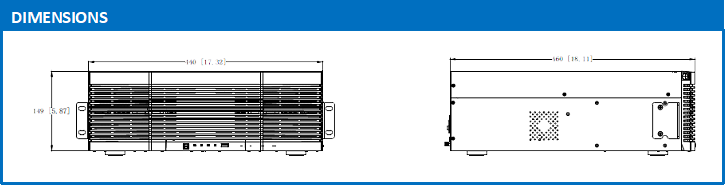

| Mechanical design | Dimension (WxDxH) | 440*460*149mm |
|
Electrical |
Input Voltage/Current | ATX 250W |
| Power consumption (excluding hard disk) |
8W |
|
| Environmental | Operating Temperature/Humidity | Temperature: -10°C~+50°C (14°F ~ 122°F) Humidity: Less than 90%RH |
