Description
| Imaging Device | 1/2.8″ Progressive CMOS | |
| Scanning System | Progressive Scanning | |
| Min. Illumination | 0.05 lux @F1.2(AGC ON),0Lux with IR ON | |
| Video Output | BNC | |
| Resolution | 5MP 2592（H）×1944（V) | |
| Max, Framerate | 5AHD/5TVI: 5MP@20fps, 4AHD/4CVI/4TVI: P@25fps, N@30fps, CVBS: 960H | |
| Max. Aperture Ratio | F1.8-3.3 | |
| Lens Type/ Focal Length | Motorized lens/2.7-13.5mm | |
| Audio | N/A | |
| Audio Range | N/A | |
| IR Distance | 30-35m | |
| On Screen Display | English | |
| Day & Night | Ext / Color / B/W | |
| Backlight Compensation | Off / User BLC | |
| Wide Dynamic Range | WDR (Off/On) | |
| Digital Noise Reduction | 3D DNR | |
| Gain Control | Auto | |
| White Balance | ATW | |
| Electronic Shutter Speed | Auto | |
| Reverse | Mirror | |
| Video Transmission Distance | MAX 300M （ Cable: 5C 2V) | |
| Operating Temperature / Humidity | -30°C ~ 55°C / 90% | |
| Ingress Protection | IP66 | |
| Input Voltage/Current | 12V DC | |
| Power Consumption | IR OFF ≤ 2W, IR ON ≤ 6.5W | |
| Color / Material | Metal | |

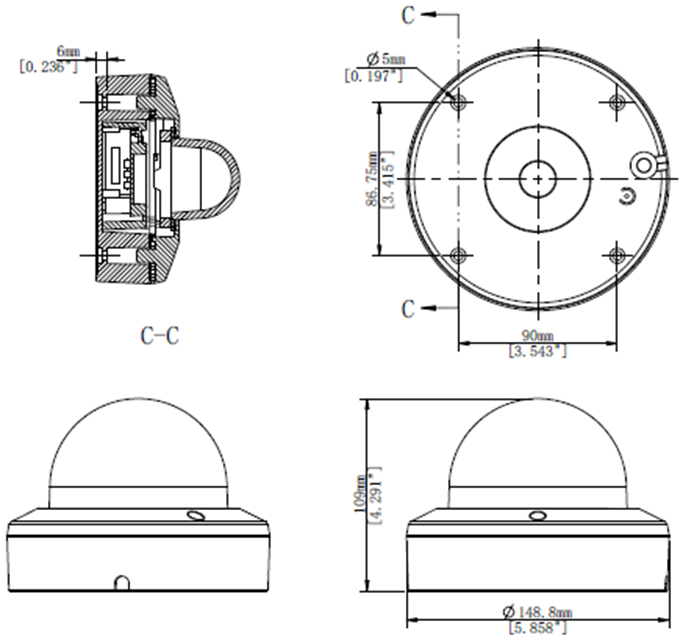

DIMENSIONS
