EVT-3-6-II-098GB-STL, EVT-3-6-II-098GB-STL,

EVT-3-6-II-098DCSGB,EVT-25-II-066DCSGB

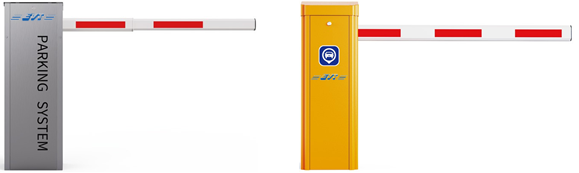

EVT SECOND GENERATION DC SERVO MOTOR GATE BARRIERS

FUNCTIONAL CHARACTERISTICS

• Operation speed can be adjusted.
• Slow up and slow down can be adjusted.
• The limit angle can be adjusted.
• Left and right direction can be quickly interchanged.
• The barrier arm can be manually operated in case of power failure.
• 418 frequency learning code anti-copy remote controller.
• Infrared photocell sensor IO signal input function.
• Loop detector and radar IO signal anti-collision signal input function.
• Up, down and stop IO signal input function.
• Counting (fleet) function.
• LED light IO signal output function.
• Traffic light IO signal output function.
• Up and down in place, normally open and normally closed signal output function.
• RS485 communication output function.
• Delay arm drop function.
• Arm auto-reverse function.
• Automatic lifting function when power is off (requires additional power storage module).
• IO port single-key cycle up and down function.
• Loop detector normally open and normally closed function.
• One car and one arm to prevent toll evasion function.
• Anti-collision alarm function (requires additional fee, installation of alarm and sensor).
• Fire linkage signal input function.
• The IO port closes the signal input function.
• 24V storage battery input function.
