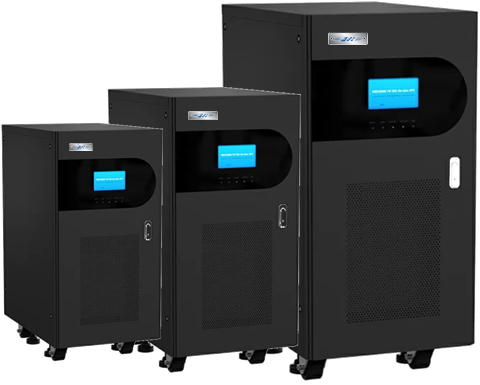

| EVT-T-M SERIES |
| Input |
Voltage |
3 Phase 4 Wires & Ground 380V/400/415±25% |
| Frequency |
50Hz/60Hz ±5% (Automatically) |
| Power Factor |
≥0.95 |
| Inverter Output |
Voltage |
3 Phase 4 Wires 380V/400/415±1% |
| Frequency |
50Hz/60Hz ±0.05% (By Battery) |
| Harmonic Distortion |
Linear Load <3%, Non-Linear Load <5% |
| Imbalance Voltage |
Balance Load≤1%, Imbalance Load≤3% |
| Phase-shift Angle |
Balance Load≤±1, Imbalance Load≤±2 |
| Transient Response |
Output at 0˷50% ˷100% ≤5%, Response ≤10ms |
| Overload Capacity |
110%≥300 Min, 125%≥10 Min, 150%≥1 Min |
| Crest Factor |
3:1 |
| Wave Form |
Pure Sine Wave |
| Transfer Time |
0ms |
| Battery |
Max. Charging Current |
0.2A x C10 |
| Charging Time |
12 Hours |
| System |
Protective Function |
Input Over-Voltage, Under-Voltage, Output Overload, Short Circuit, Inverter Over-Temperature, Battery Under-Voltage, Over-Voltage |
| Running Temperature & Humidity |
0-40 Degree Celsius, Less Than 95% (Without Condensing) |
| Altitude |
<1000m (With Increase of 100m, Output will be reduced by 1%) Max. 4000m |
| Communication Interface |
RS232, RS485 |
| Remote Signaling |
Dry Contact (Battery Low, Battery Discharging, Bypass/Fault), EPO |
| Remote Control |
EPO & Bypass |
| Degree of Protection |
IP20 (Front Door Opened) |
| Parallel Mode |
N+1, N+X, can be in parallel with different power capacity |
| Software Interface |
Windows9x, 2000, NT, Me, XP, Linux, Novell, MacOS, NT4.0 |
| Mean-time Between Failures |
300,000 Hours |
