Description

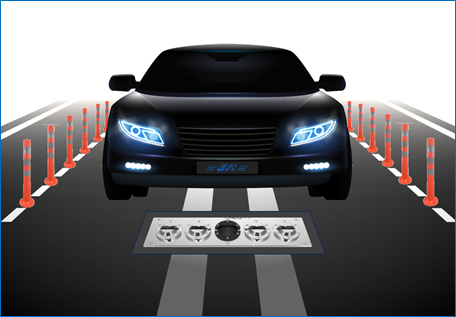

| EVT-UVS10MP-SM SHALLOW MOUNT 10 MEGA PIXEL UVSS | |
| Specification | |
| Product style | Embedded Under Vehicle Scanning System |
| Camera Sensor | Line Scans CCD |
| Resolution | 5000 x 2048 Pixel |
| Power Supply | 24VDC, 3A, 80W |
| Pixel | 2096 x 3 – Color |
| Horizontal Frequency | 9K |
| Line Array Length | 29mm |
| Sampling Bits Width | 8 bit |
| Dynamic Range | 76 dB |
| Sensitivity | 15, 21, 37V |
| Wavelength | 460/540.650 |
| Lens Mount | F |
| Transmission Mode | 3 ~ 5SGigabit Ethernet / 100 |
| Power Dissipation | ≤ 8W, 12V |
| Working temperature | -20 ℃ ~ 70 ℃ |
| Waterproof rating | IP68 |
| Illumination | LED |
| Dimensions | (L) 1100mm * (W) 280mm * (H) 205mm |

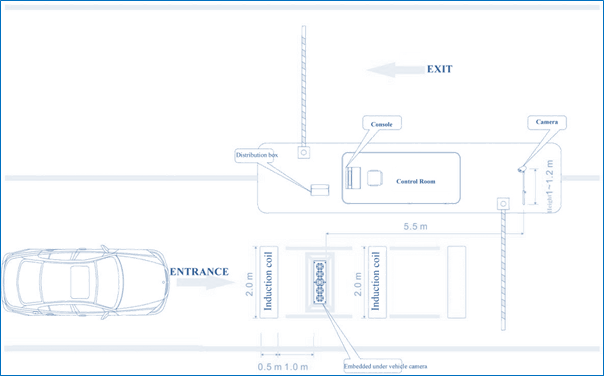

| Distribution Box Controller | |
| Input | 2 Channel Induction Coil |
| Output | 1 Channel |
| Communication | RS485, Ethernet (optional) |
| Operating Temperature | -10 ℃ ~ 60 ℃ |
| Dimensions | (L) 560mm * (W) 260mm * (H) 820mm |
| Host Hardware | |
| Processor | Intel Core i5 |
| Memory | 4GB DDR3 1600MHz |
| Graphics | Integrated |
| Hard Disk | SATA2 HDD 1TB |
| Ethernet | Dual LAN (1 Gigabit minimum) |
| USB | 3.0 x2 |
| Monitor | LCD 23.8-inch, 1920*1080 Resolution |
| Scene Video Record | 4 Channel, H.264 Compression |
| Operating System | Windows 10 |
| Dimensions | (L) 650mm * (W) 610mm * (H) 1220mm |

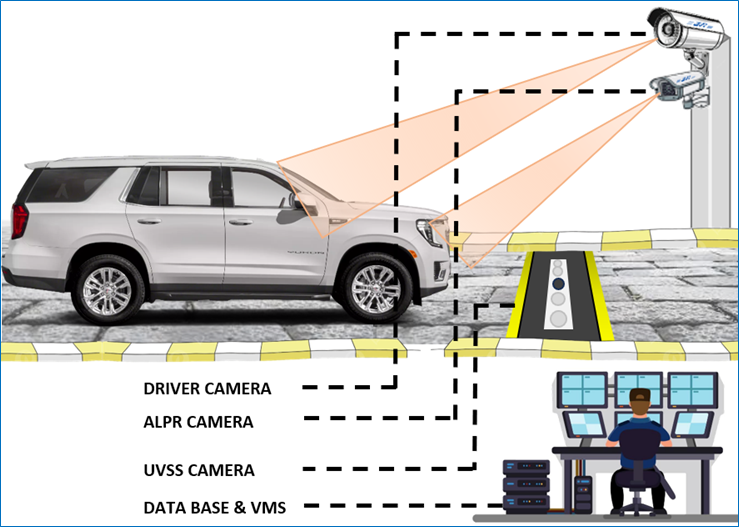

| ALPR & Driver Camera | |
| Capture Rate | ≥ 99.9% |
| Vehicle Speed | 0 ~ 30 Km/h |
| Imaging | Embedded VZ Intelligent ISP Algorithm, Auto Dimming |
| Sensor | 1/2.7-inch CMOS |
| Imaging Resolution | 2304 (H) * 1296 (V) |
| Standard Lens | 6mm Fixed Focus Lens |
| Video Resolution | 1920 * 1080 |
| Communication | Ethernet |
| Network Interface | 10/100 Mbps Adaptive RJ45 |
| Dimensions | (L) 440mm * (W) 144mm * (H) 103mm |
