EVT-PT5801-WAP-O

EVT-PT5801-WAP-O

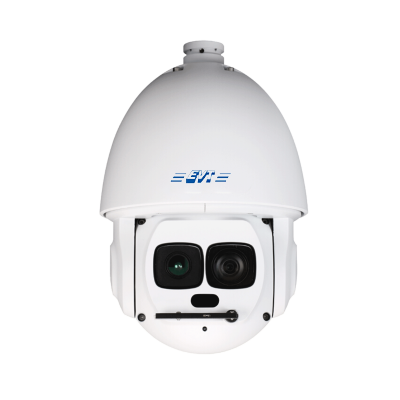

Vari-Focal  PTZ Camera 8MP

Effective Range up to 700m and Low

/ Mid / High Level selectable,45 × Optical




Category: Tag:

Description

Sensor: 8 MP Progressive Scan CMOS
lens: 6.0 mm to 252 mm, 45 × Optical
Wiper Support
IP Compression/Standard: H.265/ H.264 / MJPEG
Maximum Resolution (@ FPS): 50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)

Multiple Streaming: Triple Streams
Video Bit Rate: 128 Kbps to 16 Mbps, adjustable
S/N Ratio: 52 dB (AGC OFF)
Auto Exposure (shutter): 50 Hz: 1/3s to 1/100,000s 60 Hz: 1/3s to 1/100,000s
Composite Output (BNC): PAL, 1.0 Vp-p @ 75 ohm
Wide Dynamic Range WDR
WDR in dB 120dB
Digital noise reduction 3D DNR
Day/Night True D/N
Motorized IR Cut Filter Yes
Color sensitivity Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux IR ON
IR Wavelength 850nm
Voltage Input: 12VDC / 24VAC / PoE (802.3af / 802.3at with heater)
Power Consumption: Day Time Power ≤3.5W, IR On ≤ 7W
Current: 1420mA @ 12VDC / 1010mA @ 24VAC
Auxiliary Power 50mA @12VDC Line level
Network Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, ezDDNS, RTP, RTSP, PPPoE, SMTP, NTP,

SNMP, HTTPS, FTP, 802.1x, Qos, IPv6. ONVIF, PSIA, CGI

PoE IEEE: 802.3at
Standard & Integration ONVIF Profile (G,S), PSIA, CGI
Media: MicroSD/micro SDHC/ microSDXC
Capacity: Up to 128GB
Basic: Motion Detection, Tamper Proof, Privacy Mask
OSD: Yes
Weight: 2100 g (4.62 lbs.)
Storage Temperature: -30° to 80°C (-22° to 140°F)
Operating Temperature: -40° to +80°C (-40 to +140°F), with heater on
Environmental Rating: IP67
Vandal Rating: IK10
Outdoor: Yes
Compliance: FCC, CE, UL, WEEE, RoHS, REACH
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Presets 300
PTZ Mode


5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup



Human-oriented focal Length/ speed adaptation
