Description
| EVT-SMHRB-SERIES SHALLOW-MOUNT HYDRAULIC BARRICADE | ||||
| Impact Load | 7.5 Tons at 80km/h Speed | Dimensions | Width: 36cm + Blocking Width | |
| Blocking Width | 2m, 3m, 4m, 5m, or 6m | Length: 2.1m | ||
| Blocking Height | 1.2m | Foundation Depth | 40cm | |
| Certification & Approvals | PAS68 V/7500[N3]/80/90:0.0, DOS SD-STD-02.01 Rev. A 04/2012 K12/L3, IWA 14-1 & ASTM F2656 | Operating Temperature | -15℃ ~ +65℃ | |
| Movement Duration | 3-5 Seconds from Rise Movement to Home Position | Humidity | 90% Non-CondensingDC12V±10%, 950mA | |
| No-Power Emergency | Manual Ride | Power | Standard Three-Phase 380V, 50-60Hz | |
| Approvals | CE, FCC, RoHS | OPTION: Single-Phase 220-240V EVT-SMHRBS Series (Includes Transformer) | ||
| FEATURES | ||||
|
· Physically impact tested to PAS 68, DOS SD-STD-02.01 Rev. A 04/2012 K12/L3, IWA 14-1 & ASTM F2656 · Shallow foundation 40cm overall depth · Manual hand pump facility · Manufactured from heavy gauge material · Accurate performance guaranteed · Reliability and low maintenance · Operational under power failure conditions · Zero penetration, Zero scatter · Assurance of physical protection
|

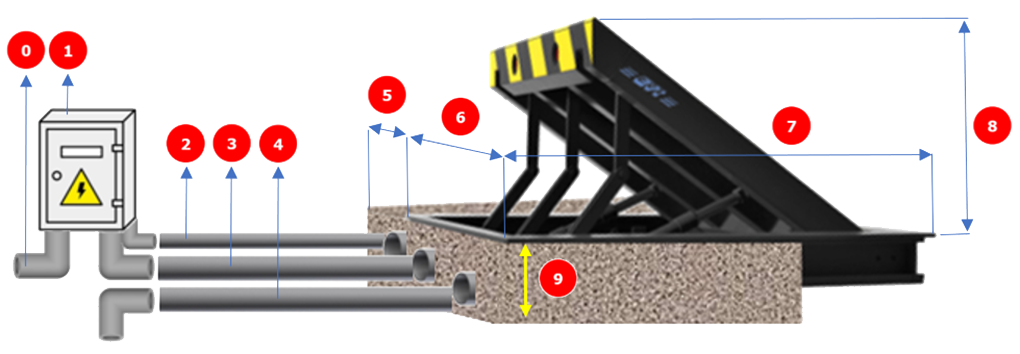

| INSTALLATION GUIDE |
| 1 | Hydraulic & power unit | 4 | Water drainage ducting (recommended 2.5”) | 7 | 2.1m Steel frame (blocker length) |
| 2 | Conduit for cables to Road Blocker | 5 | 60cm concrete base (add to blocking width each side) | 8 | Blocking height |
| 3 | Hydraulic ducting (recommended 2.5”) | 6 | Blocking width | 9 | Concrete base depth |
| COLOR OPTIONS |
 |

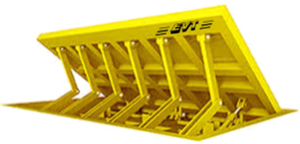

RAL1018 Zinc Yellow
EVT-SMHRB-18-x (x refers to the desired blocking width) |
 |
RAL1028 Melon Yellow
EVT-SMHRB-28-x (x refers to the desired blocking width) |
 |

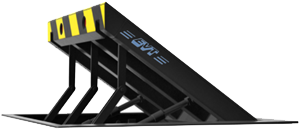

RAL9005 Black Striped RAL1018 Zinc Yellow
EVT-SMHRB-58-x (x refers to the desired blocking width) |
